Nome da marca: | SUNRICH |
Número do Modelo: | SRC |
MOQ: | one set |
preço: | usd35000-usd48000 |
Tempo de entrega: | 35 working days |
Termos de pagamento: | L/C, T/T |

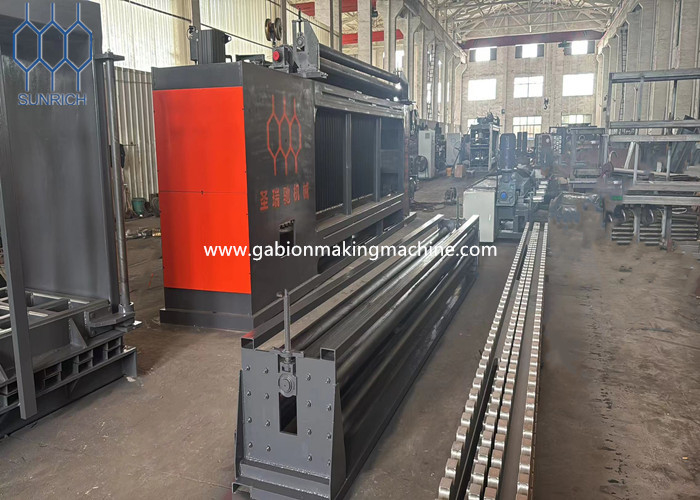

The Gabion Box Machine is a fully automated production solution for weaving hexagonal double-twist wire mesh, assembling gabion panels, and manufacturing complete gabion baskets (2×1×1 m, 3×1×1 m, etc.), widely used in river protection, retaining walls, and slope reinforcement. Our equipment is designed to deliver precise mesh structure, continuous production, and stable output, ensuring maximum strength and durability.
Wide Working Width & Adjustable Mesh Sizes
Engineered to weave gabion meshes from 60×80 mm to 120×150 mm, with customizable widths spanning 3 m to 5.7 m, this machine offers flexibility for standard 2×1×1 m and 3×1×1 m gabion boxes.
High-Speed, Automated Operation
Equipped with PLC or servo-motion control, spindle speeds reach up to 20–25 r/min, delivering mesh production rates up to 225–255 m/h. Combined with features like automatic lubrication and broken-wire detection, it ensures uninterrupted high-efficiency operations.
Robust Performance and Reliable Build
Designed for heavy-duty applications, the machine handles 2.0 mm–4.0 mm wire diameters—including galvanized, galfan, and PVC-coated options—ensuring durability in demanding environments.
Factory-Integrated Parts Manufacturing
We control the entire production process—all components are manufactured in-house, eliminating quality discrepancies from outsourced suppliers.
Global Standards & Comprehensive Support
With ISO and CE certifications, we meet export-quality standards. Every machine comes standard with a 12-month warranty, optional on-site installation, and spare parts supplied at cost.
Parameter | Specification |
---|---|
Mesh sizes | 60×80 mm, 80×100 mm, 100×120 mm, 120×150 mm (customizable) |
Wire diameter | 2.0 – 4.0 mm (galvanized, galfan, PVC coated) |
Working width | 3.0 m – 5.7 m |
Speed | 20–25 r/min (up to 225–255 m/h) |
Number of twists | Double twist (3 &5) |
Drive system | PLC + Inverter / Servo Motor (optional) |
Power supply | 380V / 50Hz / 3 Phase (customized for other regions) |
Operation mode | Fully automatic with lubrication & broken wire detection |
Output capacity | 300–500 gabion boxes/day (depending on size) |
No. | Equipment Name | Function |
---|---|---|
1 | Gabion Mesh Weaving Machine (Main Machine) | Produces double-twist hexagonal mesh in customizable sizes (60×80mm to 120×150mm); working width 3.0–5.7m |
2 | Wire tension Machine | Prepares and aligns multiple wires before feeding into the weaving machine |
3 | Spiral Wire Coiling Machine | Forms the twisted wire edges or spirals used for assembling the gabion boxes |
4 | Wire Pay-Off System | Supports and feeds wire coils into the weaving machine with controlled tension |
5 | Mesh Winding Machine | Rolls up finished mesh panels for easy transport and storage |
6 | Mesh Straightening & Cutting Machine | Automatically flattens and cuts mesh panels to specified sizes |
7 | Automatic Mesh Transfer Platform | Transfers mesh panels between processes—saves labor and improves efficiency |
8 | Edge Up Machine | Binds and rolls the edges (selvage) of the mesh for added strength |
9 | Wire Straightening Machine | Straightens wire before it enters other machines, improving wire quality |
10 | Gabion Packing | Final packing of folded gabion boxes; includes wire tying and bundling |
Advantage | Benefit |
---|---|
Scalable Production | Perfect for both medium and large-scale infrastructure demands with batch outputs in the thousands of square meters per day. |
Accurate, Durable Mesh | Ensures structural stability with tight mesh tolerances—ideal for hydraulic engineering and slope integrity. |
Smart Automation | Reduces operator load, optimizes downtime, and supports full line integration including mesh winding and edge-binding. |
Turnkey Service | From design to delivery and after-sales support, our one-stop approach simplifies project procurement and deployment. |
Malaysia – Highway slope protection project supplier
India – Government contractor for river defense
Philippines – Construction supply chain company
Jordan – Wire mesh manufacturer with own coating line
Tunisia – Integrated gabion box factory
Iran – Private gabion production workshop
River training and flood control
Retaining wall systems in highways and railways
Coastal and embankment erosion protection
Bridge and culvert foundations
Mining site reinforcement and tailing dam control
Military defense and soil erosion control
Q: Can I choose a smaller width machine, like 3.0m or 4.0m?
A: Yes. We provide machine widths from 3.0m to 5.7m depending on your desired box size and output capacity.
Q: How long does it take to install a full production line?
A: Usually 7–10 days with our on-site engineers or remote video guidance.
Q: What type of wire is suitable?
A: Our machines work with galvanized wire, galfan wire, and PVC-coated wire in 2.0–4.0 mm diameter.
